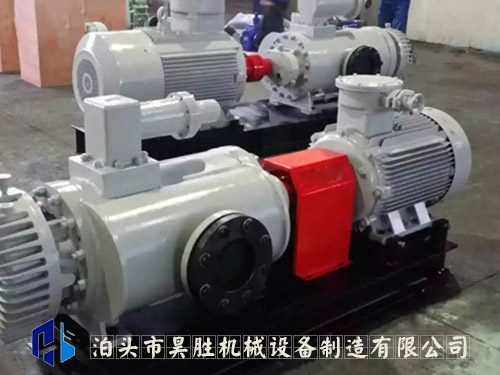

產品描述：
密封雙螺桿泵輸送液體平穩,無脈動,無攪拌,振動小,噪音低.有很強的自吸性能,多相混輸時,含氣率不高于80%,含沙量不高于500g/m3. 外置軸承結構,采用獨立潤滑,可以輸送各種非潤滑性介質. ......
全國服務熱線：18932770289
我要詢價產品描述
密封雙螺桿泵輸送液體平穩,無脈動,無攪拌,振動小,噪音低.有很強的自吸性能,多相混輸時,含氣率不高于80%,含沙量不高于500g/m3. 外置軸承結構,采用獨立潤滑,可以輸送各種非潤滑性介質.
密封雙螺桿泵泵性能范圍
1,最高工作壓力4.0MPa
2,流量范圍 1～1000m3/h
3,溫度范圍-20～120℃
4,介質粘度 1～3000mm2/s,降低轉速可達到106mm2/s
介質粘度對 雙螺桿泵性能影響較大,泵的名義排量是指在特定粘度條件下的排量,為保證泵能在較高效率下工作,在試驗不充分時,建議按下列粘度條件選擇轉速:
介質粘度cSt 轉速r/min
＜400 1500
400 ～1200 1000
1200～3600 750
對于粘度更高的介質,所應選用的轉速和驅動電機功率,請與制造廠聯系.
2W.W密封型雙螺桿泵應用舉例
1,油田:用作油,氣,水,微量細小固相顆粒等多相混輸泵及原油輸送泵.
2,造般業:用作船用裝載泵,船底掃艙及污水處理,主機潤滑泵,燃料油泵.
3,石油化學工業 :用作各種樹脂,顏料,石蠟,油漆,油墨,乳膠,各種油品,原油 ,重油等裝載和運輸泵.
4,熱電廠:用作重油,原油輸送泵,主機潤滑油泵.
5,食品工業:用作灑精,蜂蜜,糖漿,果汁,動植物油,牛奶,漿油輸送泵.
2W.W機械密封型雙螺桿泵型號及代碼說明
1,系列代碼說明
2W.W:臥式,外置軸承式
2W.N:臥式,內置軸承式
2,規格代碼說明
規格代碼反映泵的尺寸大小,工作能力范圍,代碼大,一般尺寸大,壓力也高.詳見技術特性表.
3,密封代碼說明
J:一般機械密封
B:金屬波紋管機械密封
4,材料代碼說明
Ⅰ:一般工程結構鋼為主.
Ⅱ:馬氏體耐蝕鋼為主.
Ⅲ:奧氏體耐蝕鋼為主.
2W.W型雙螺桿泵性能參數表
型號 規格 | 壓力 MPa | 1450r/nin | 950r/min | 720r/min | |||||||||||||
30cSt | 75cSt | 150cSt | 300cSt | 450cSt | 750cSt | 1500cSt | 2500cSt | ||||||||||
| m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | m3/h | kw | ||
| 2.5-15 | 0.6 | 2.4 | 1.5 | 3 | 2.2 | 3.2 | 2.2 | 3.3 | 2.2 | 1.8 | 1.5 | 1.8 | 2.2 | 1.3 | 2.2 | 1.3 | 2.2 |
| 1.0 | 1.7 | 2.2 | 2.6 | 2.2 | 2.9 | 3 | 3.1 | 3 | 1.7 | 2.2 | 1.7 | 2.2 | 1.2 | 2.2 | 1.2 | 2.2 | |
| 2.5-20 | 0.4 | 3.9 | 1.5 | 4.3 | 1.5 | 4.4 | 2.2 | 4.5 | 2.2 | 2.6 | 1.5 | 2.6 | 2.2 | 1.9 | 2.2 | 1.9 | 2.2 |
| 0.6 | 3.4 | 1.5 | 4 | 2.2 | 4.2 | 2.2 | 4.3 | 2.2 | 2.5 | 2.2 | 2.5 | 2.2 | 1.8 | 1.5 | 1.8 | 2.2 | |
| 2.8-18 | 0.6 | 4.3 | 2.2 | 4.8 | 2.2 | 4.9 | 3 | 5 | 3 | 2.9 | 2.2 | 2.9 | 3 | 2.1 | 3 | 2.1 | 3 |
| 1.0 | 3.7 | 3 | 4.4 | 4 | 4.7 | 4 | 4.8 | 4 | 2.7 | 3 | 2.7 | 3 | 2 | 3 | 2 | 4 | |
| 2.8-24 | 0.4 | 6.3 | 2.2 | 6.6 | 2.2 | 6.7 | 3 | 6.8 | 3 | 4 | 2.2 | 4 | 3 | 2.9 | 2.2 | 2.9 | 3 |
| 0.6 | 5.9 | 2.2 | 6.4 | 4 | 6.5 | 4 | 6.6 | 4 | 3.8 | 3 | 3.8 | 3 | 2.7 | 3 | 2.7 | 3 | |
| 3.1-22 | 0.6 | 7.7 | 3 | 8.2 | 4 | 8.3 | 4 | 8.4 | 4 | 5 | 3 | 5 | 4 | 3.7 | 3 | 3.7 | 4 |
| 1.0 | 7 | 4 | 7.8 | 5.5 | 8 | 5.5 | 8.1 | 5.5 | 4.8 | 4 | 4.8 | 5.5 | 3.5 | 4 | 3.5 | 5.5 | |
| 3.1-30 | 0.4 | 11.1 | 3 | 11.4 | 3 | 11.5 | 4 | 11.6 | 5.5 | 6.9 | 3 | 6.9 | 4 | 5.1 | 3 | 5.1 | 4 |
| 0.6 | 10.6 | 4 | 11.1 | 5.5 | 11.3 | 5.5 | 11.4 | 5.5 | 6.7 | 4 | 6.7 | 5.5 | 4.9 | 4 | 4.9 | 5.5 | |
| 3.2-18 | 1.6 | - | - | 4.8 | 7.5 | 5.8 | 7.5 | 6.3 | 7.5 | 2.4 | 5.5 | 2.4 | 5.5 | 0.9 | 4.0 | 0.9 | 5.5 |
| 2.0 | - | - | 4.2 | 7.5 | 5.5 | 7.5 | 6.1 | 11 | 2.3 | 7.5 | 2.3 | 7.5 | 0.9 | 4.0 | 0.9 | 5.5 | |
| 2.5 | - | - | 3.4 | 11 | 5.0 | 11 | 5.8 | 11 | 2.1 | 7.5 | 2.1 | 7.5 | 0.8 | 5.5 | 0.8 | 5.5 | |
| 3.2-24 | 1.0 | 5.5 | 5.5 | 7.6 | 7.5 | 8.4 | 11 | 8.7 | 11 | 4.6 | 5.5 | 4.6 | 5.5 | 2.7 | 5.5 | 2.7 | 5.5 |
| 1.25 | 4.6 | 7.5 | 7.2 | 11 | 8.2 | 11 | 8.5 | 11 | 4.5 | 5.5 | 4.5 | 7.5 | 2.6 | 5.5 | 2.6 | 7.5 | |
| 1.6 | 3.4 | 7.5 | 6.7 | 11 | 7.8 | 11 | 8.3 | 11 | 4.3 | 7.5 | 4.3 | 7.5 | 2.5 | 5.5 | 2.5 | 7.5 | |
| 3.2-30 | 0.6 | 9.7 | 5.5 | 11 | 5.5 | 11.5 | 5.5 | 11.7 | 7.5 | 6.8 | 5.5 | 6.8 | 5.5 | 4.3 | 5.5 | 4.3 | 5.5 |
| 1.0 | 8.0 | 7.5 | 10.2 | 7.5 | 10.9 | 7.5 | 11.2 | 7.5 | 6.5 | 5.5 | 6.5 | 5.5 | 4.3 | 5.5 | 4.3 | 5.5 | |
| 3.2-44 | 0.4 | 16.4 | 5.5 | 17.5 | 7.5 | 17.9 | 7.5 | 18.1 | 7.5 | 11.2 | 4.0 | 11.3 | 5.5 | 8.0 | 4.0 | 8.0 | 4.0 |
| 0.6 | 15.2 | 7.5 | 17 | 7.5 | 17.4 | 7.5 | 17.6 | 7.5 | 10.9 | 5.5 | 11 | 5.5 | 7.8 | 5.5 | 7.8 | 5.5 | |
| 3.4-24 | 1.6 | - | - | 7.4 | 11 | 9 | 11 | 9.8 | 11 | 5.7 | 7.5 | 5.7 | 7.5 | 4.3 | 7.5 | 4.3 | 11 |
| 2.0 | - | - | 6.5 | 11 | 8.5 | 11 | 9.5 | 15 | 5.5 | 11 | 5.5 | 11 | 4.1 | 7.5 | 4.1 | 11 | |
| 2.5 | - | - | 5.3 | 15 | 7.8 | 15 | 9.1 | 15 | 5.1 | 11 | 5.1 | 11 | 3.9 | 11 | 3.9 | 11 | |
| 3.4-30 | 1.0 | 8.3 | 7.5 | 11.4 | 7.5 | 12.4 | 11 | 12.9 | 11 | 7.6 | 7.5 | 7.6 | 7.5 | 5.6 | 7.5 | 5.6 | 7.5 |
| 1.25 | 6.9 | 11 | 10.7 | 11 | 12.1 | 11 | 12.6 | 11 | 7.4 | 7.5 | 7.4 | 11 | 5.5 | 7.5 | 5.5 | 11 | |
| 1.6 | 5 | 11 | 9.9 | 11 | 11.5 | 11 | 12.3 | 15 | 7.1 | 11 | 7.1 | 11 | 5.3 | 7.5 | 5.3 | 11 | |
| 3.4-40 | 0.6 | 14.8 | 5.5 | 16.8 | 7.5 | 17.5 | 7.5 | 17.8 | 11 | 10.6 | 7.5 | 10.6 | 7.5 | 7.8 | 7.5 | 7.8 | 7.5 |
| 1.0 | 12.2 | 11 | 15.5 | 11 | 16.6 | 11 | 17.2 | 11 | 10 | 7.5 | 10 | 7.5 | 7.4 | 7.5 | 7.4 | 7.5 | |
| 3.4-56 | 0.4 | 21.8 | 5.5 | 23.2 | 7.5 | 23.7 | 7.5 | 24 | 11 | 14.3 | 5.5 | 14.4 | 7.5 | 10.5 | 5.5 | 10.5 | 7.5 |
| 0.6 | 20.2 | 7.5 | 22.5 | 11 | 23.1 | 11 | 23.4 | 11 | 13.8 | 7.5 | 13.9 | 7.5 | 10.1 | 7.5 | 10.1 | 7.5 | |
| 4.0-26 | 1.6 | 12.4 | 15 | 14.6 | 15 | 15.7 | 18.5 | 9.3 | 11 | 9.3 | 15 | 7 | 11 | 7 | 15 | ||
| 2.0 | 11.2 | 15 | 13.9 | 18.5 | 15.3 | 22 | 9 | 15 | 9 | 15 | 6.8 | 15 | 6.8 | 15 | |||
| 2.5 | 9.6 | 18.5 | 13.1 | 22 | 14.8 | 22 | 8.6 | 15 | 8.6 | 15 | 6.6 | 15 | 6.6 | 15 | |||
| 4.0-32 | 1.0 | 13.9 | 11 | 18.2 | 15 | 19.6 | 15 | 20.3 | 15 | 12.2 | 11 | 12.2 | 15 | 9.1 | 11 | 9.1 | 11 |
| 1.25 | 12 | 15 | 17.3 | 15 | 19.1 | 15 | 20 | 18.5 | 11.9 | 11 | 11.9 | 15 | 8.9 | 11 | 8.9 | 15 | |
| 1.6 | 16.1 | 18.5 | 18.4 | 18.5 | 19.5 | 22 | 11.5 | 15 | 11.5 | 15 | 8.6 | 11 | 8.6 | 15 | |||
| 4.0-44 | 0.6 | 24.6 | 11 | 27.4 | 11 | 28.3 | 11 | 28.8 | 15 | 17.3 | 11 | 17.3 | 11 | 12.8 | 11 | 12.8 | 11 |
| 1.0 | 21.1 | 15 | 25.7 | 15 | 27.2 | 15 | 27.9 | 18.5 | 16.6 | 11 | 16.6 | 15 | 12.3 | 11 | 12.3 | 15 | |
| 4.0-64 | 0.4 | 37.2 | 11 | 39.1 | 11 | 39.8 | 11 | 40.1 | 15 | 24.1 | 11 | 24.2 | 11 | 17.8 | 11 | 17.8 | 11 |
| 0.6 | 35 | 11 | 38 | 15 | 38.9 | 15 | 39.4 | 18.5 | 23.5 | 11 | 23.7 | 11 | 17.3 | 11 | 17.3 | 11 | |
| 4.5-30 | 1.6 | 17.4 | 18.5 | 22.3 | 22 | 24 | 22 | 24.8 | 30 | 14.9 | 18.5 | 15 | 18.5 | 11.1 | 18.5 | 11.2 | 18.5 |
| 2.0 | 15.1 | 22 | 21.3 | 30 | 23.4 | 30 | 24.4 | 30 | 14.5 | 22 | 14.6 | 22 | 10.9 | 18.5 | 11 | 22 | |
| 2.5 | 12.3 | 30 | 20 | 30 | 22.6 | 30 | 23.9 | 30 | 14.2 | 22 | 14.3 | 22 | 10.6 | 18.5 | 10.6 | 22 | |
| 4.5-40 | 1.0 | 29.1 | 18.5 | 32.4 | 18.5 | 33.5 | 22 | 34 | 22 | 20.5 | 18.5 | 20.6 | 18.5 | 15.3 | 15 | 15.3 | 18.5 |
| 1.25 | 27.5 | 18.5 | 31.6 | 22 | 33 | 30 | 33.7 | 30 | 20.2 | 18.5 | 20.3 | 22 | 15 | 18.5 | 15.1 | 22 | |
| 1.6 | 25.3 | 30 | 30.6 | 30 | 32.3 | 30 | 33.2 | 30 | 19.9 | 22 | 20 | 22 | 14.7 | 18.5 | 14.8 | 22 | |
| 4.5-52 | 0.6 | 41.8 | 15 | 43.9 | 15 | 44.6 | 18.5 | 45 | 22 | 27.3 | 15 | 27.4 | 18.5 | 20.3 | 15 | 20.3 | 15 |
| 1.0 | 38.9 | 22 | 42.4 | 22 | 43.6 | 30 | 44.2 | 30 | 26.6 | 18.5 | 26.7 | 18.5 | 19.7 | 15 | 19.7 | 18.5 | |
| 4.5-72 | 0.4 | 57.3 | 15 | 58.8 | 15 | 59.3 | 18.5 | 59.6 | 22 | 36.1 | 15 | 36.2 | 15 | 26.9 | 15 | 26.9 | 18.5 |
| 0.6 | 55.5 | 18.5 | 57.7 | 22 | 58.5 | 22 | 58.9 | 22 | 35.5 | 22 | 35.6 | 18.5 | 26.3 | 18.5 | 26.3 | 22 | |
| 5.0-28 | 2.5 | 17.3 | 37 | 24.7 | 37 | 27.2 | 37 | 28.4 | 45 | 17.1 | 30 | 17.3 | 37 | 12.9 | 30 | 12.9 | 37 |
| 3.2 | 23.1 | 45 | 26.3 | 45 | 27.9 | 55 | 16.7 | 37 | 17 | 45 | 12.7 | 37 | 12.8 | 37 | |||
| 4.0 | 21.3 | 55 | 25.3 | 55 | 27.3 | 75 | 16.2 | 45 | 16.5 | 45 | 12.4 | 37 | 12.6 | 45 | |||
| 5.0-40 | 1.6 | 34.6 | 37 | 39.5 | 45 | 41.1 | 45 | 42 | 45 | 25.4 | 30 | 25.6 | 37 | 19.9 | 30 | 20 | 37 |
| 2.0 | 32.3 | 37 | 38.4 | 45 | 40.5 | 45 | 41.5 | 45 | 25.1 | 37 | 25.3 | 37 | 18.8 | 37 | 18.9 | 37 | |
| 5.0-40 | 2.5 | 29.4 | 45 | 37.1 | 45 | 39.7 | 55 | 41 | 55 | 24.7 | 37 | 24.9 | 37 | 18.5 | 37 | 18.6 | 37 |
| 5.0-52 | 1.0 | 50.7 | 30 | 53.9 | 30 | 55 | 37 | 55.5 | 37 | 33.8 | 30 | 34 | 30 | 25.3 | 30 | 25.4 | 30 |
| 1.25 | 49.1 | 30 | 53.1 | 37 | 54.4 | 37 | 55.1 | 45 | 33.5 | 30 | 33.7 | 37 | 25 | 30 | 25.1 | 37 | |
| 1.6 | 46.9 | 37 | 52 | 45 | 53.7 | 45 | 54.6 | 55 | 33.1 | 37 | 33.3 | 37 | 24.7 | 30 | 24.7 | 37 | |
| 5.0-64 | 0.6 | 66.1 | 22 | 68.1 | 22 | 68.8 | 30 | 39.1 | 37 | 42.3 | 22 | 42.4 | 30 | 31.6 | 22 | 31.7 | 30 |
| 1.0 | 63.2 | 30 | 66.6 | 37 | 67.7 | 37 | 68.2 | 45 | 41.5 | 30 | 41.7 | 30 | 30.9 | 30 | 31 | 30 | |
| 5.0-96 | 0.4 | 96.7 | 22 | 98.1 | 22 | 98.6 | 30 | 98.8 | 37 | 60.3 | 22 | 60.4 | 30 | 45.1 | 22 | 45.1 | 30 |
| 0.6 | 89.7 | 30 | 96.9 | 37 | 97.7 | 37 | 98 | 45 | 59.6 | 30 | 59.7 | 30 | 44.4 | 30 | 44.5 | 30 | |
| 5.0-30 | 2.5 | 26.7 | 45 | 34.1 | 45 | 36.6 | 55 | 37.8 | 75 | 22.7 | 45 | 23 | 45 | 17.1 | 45 | 17.3 | 45 |
| 3.2 | 23 | 55 | 32.5 | 55 | 35.7 | 75 | 37.2 | 75 | 22.2 | 45 | 22.5 | 55 | 16.8 | 45 | 17 | 55 | |
| 4.0 | 30.6 | 75 | 34.6 | 75 | 36.6 | 75 | 21.8 | 55 | 22.1 | 55 | 16.6 | 55 | 16.8 | 55 | |||
| 5.5-44 | 1.6 | 43 | 45 | 51.7 | 45 | 54.6 | 55 | 56 | 55 | 33.8 | 37 | 34.1 | 45 | 25.5 | 37 | 25.6 | 45 |
| 2.0 | 39 | 55 | 49.9 | 55 | 53.6 | 55 | 55.4 | 75 | 33.2 | 45 | 33.6 | 55 | 25 | 45 | 25.2 | 55 | |
| 2.5 | 34.1 | 55 | 47.8 | 75 | 52.3 | 75 | 54.6 | 75 | 32.7 | 55 | 33.3 | 55 | 24.7 | 45 | 24.8 | 55 | |
| 5.5-56 | 1.0 | 64.3 | 37 | 70 | 37 | 71.9 | 45 | 72.9 | 55 | 44.1 | 37 | 44.4 | 45 | 33 | 37 | 33.2 | 45 |
| 1.25 | 61.6 | 45 | 68.8 | 45 | 71.1 | 55 | 72.2 | 75 | 43.7 | 37 | 44 | 45 | 32.7 | 37 | 32.8 | 45 | |
| 1.6 | 57.9 | 55 | 67 | 55 | 70 | 75 | 71.5 | 75 | 43.1 | 45 | 43.4 | 45 | 32.3 | 37 | 32.4 | 45 | |
| 5.5-80 | 0.6 | 99.7 | 30 | 103 | 37 | 104 | 45 | 105 | 45 | 64 | 30 | 64.2 | 37 | 48 | 30 | 48 | 37 |
| 1.0 | 94.6 | 45 | 100 | 55 | 102 | 55 | 103 | 75 | 62.8 | 45 | 63.1 | 45 | 46.9 | 37 | 47 | 45 | |
| 5.5-120 | 0.4 | 146 | 30 | 149 | 37 | 150 | 45 | 150 | 55 | 91.8 | 30 | 92 | 37 | 68.6 | 30 | 68.7 | 37 |
| 0.6 | 143 | 45 | 147 | 55 | 148 | 55 | 149 | 55 | 90.7 | 37 | 90.9 | 45 | 67.6 | 37 | 67.6 | 45 | |
| 6.1-36 | 2.5 | 40.9 | 75 | 51.9 | 75 | 55.7 | 75 | 57.4 | 90 | 33 | 55 | 33.4 | 75 | 24.9 | 55 | 25 | 75 |
| 3.2 | 35.4 | 75 | 49.5 | 90 | 54.2 | 90 | 56.6 | 110 | 32.4 | 75 | 32.9 | 75 | 24.5 | 75 | 24.7 | 75 | |
| 4.0 | 46.8 | 110 | 52.7 | 110 | 55.6 | 110 | 31.7 | 75 | 32.4 | 90 | 24 | 75 | 24.3 | 75 | |||
| 6.1-48 | 1.6 | 67.6 | 55 | 74.8 | 75 | 77.3 | 75 | 78.5 | 75 | 47.5 | 55 | 47.8 | 75 | 35.7 | 55 | 35.8 | 75 |
| 2.0 | 64.2 | 75 | 73.3 | 75 | 76.3 | 75 | 77.8 | 90 | 47 | 75 | 47.5 | 75 | 35.2 | 55 | 35.3 | 75 | |
| 2.5 | 60 | 75 | 71.4 | 90 | 75.2 | 90 | 77.1 | 110 | 46.4 | 75 | 46.9 | 75 | 34.9 | 55 | 34.9 | 75 | |
| 6.1-64 | 1.0 | 99 | 45 | 103 | 55 | 105 | 75 | 106 | 75 | 64.5 | 45 | 64.7 | 55 | 48.4 | 45 | 48.5 | 55 |
| 1.25 | 96.6 | 55 | 102 | 75 | 104 | 75 | 105 | 90 | 64.1 | 55 | 64.3 | 75 | 48 | 55 | 48 | 75 | |
| 1.6 | 93.3 | 75 | 101 | 75 | 103 | 90 | 104 | 90 | 63.2 | 75 | 63.7 | 75 | 47.2 | 55 | 47.5 | 75 | |
